Syfw To-Do AI Assistant

AI Voice agentic solution integrated with Synthflow.ai

Flask SQLAlchemy Pydantic Synthflow.ai Google Calendar

Technical Architecture

Overview

Synthflow is a leading AI voice solution in today’s market. The Syfw To-Do AI Assistant is a Flask-based REST API designed to handle task management, reminders, and calendar events. It integrates seamlessly with Synthflow.ai voice agents using standardized tool call interfaces and custom actions. All data is stored in a PostgreSQL database and synchronized in real time with the user’s Google Calendar and Gmail through the Google Calendar API, enabling a unified and responsive experience across platforms.

Core Technologies

• Flask (Python web framework)
• SQLAlchemy with shared database instance
• Pydantic models for request/response validation
• Blueprint architecture for modular design

Key Features

• To-do list management
• Reminder system
• Calendar event management
• Google Calendar integration
• Voice API integration (Synthflow.ai)
• RESTful API endpoints

Module Structure

Shared Components

shared/
├── google_calendar.py  # Google Calendar integration service
├── helpers.py          # Shared utility functions and request parsing
└── schemas.py          # Pydantic validation schemas

Syfw Todo Components

syfw_todo/
├── __init__.py      # Package initialization, exports blueprint
├── models.py        # SQLAlchemy database models
├── routes.py        # Flask routes and blueprint definition
└── README_syfw      # Documentation

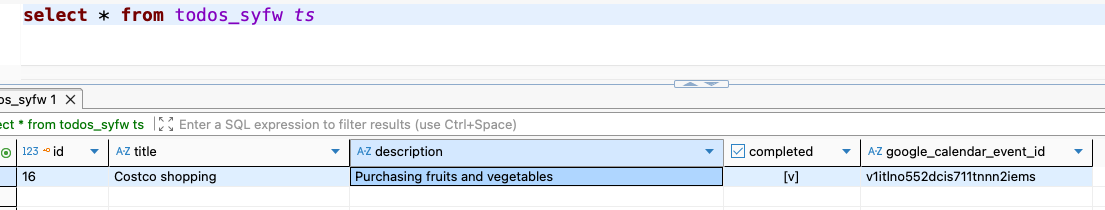

Data Layer (models.py)

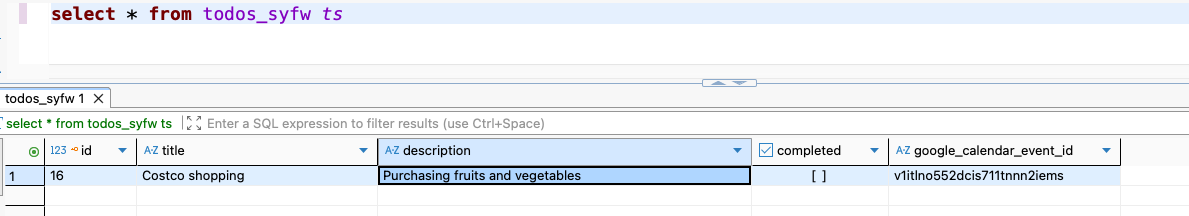

SyfwTodo Model

• id: Primary key
• title: Task title (indexed)
• description: Optional task details
• completed: Boolean status
• google_calendar_event_id

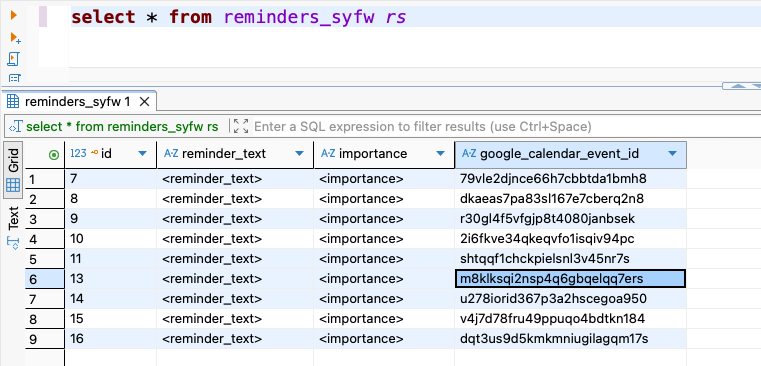

SyfwReminder Model

• id: Primary key
• reminder_text: Reminder content
• importance: Priority level
• google_calendar_event_id

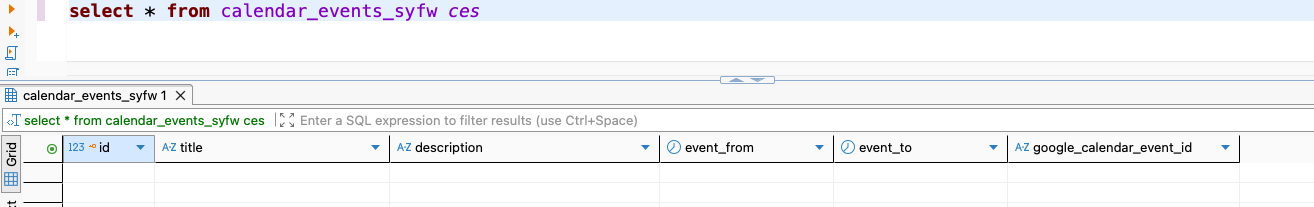

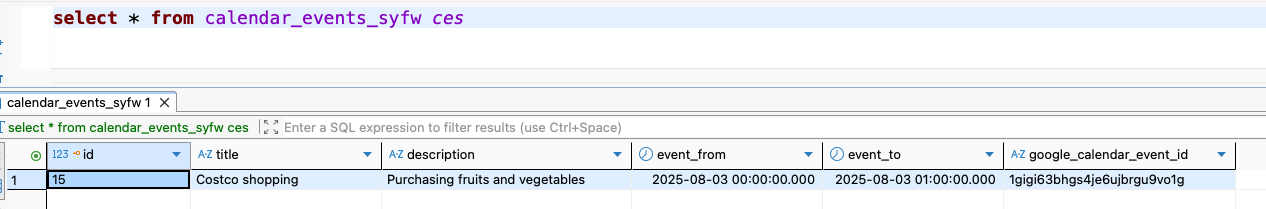

SyfwCalendarEvent Model

• id: Primary key
• title: Event title (indexed)
• description: Event details
• event_from: Start datetime
• event_to: End datetime
• google_calendar_event_id

API Endpoints

To-Do Management

POST /syfw_todo/create_todo
POST /syfw_todo/get_todos
POST /syfw_todo/complete_todo
POST /syfw_todo/delete_todo

Reminder Management

POST /syfw_todo/add_reminder
POST /syfw_todo/get_reminders
POST /syfw_todo/delete_reminder

Calendar Management

POST /syfw_todo/add_calendar_entry
POST /syfw_todo/get_calendar_entries
POST /syfw_todo/delete_calendar_entry

Google Calendar Integration

The SYFW Todo system integrates with Google Calendar to automatically sync calendar events, to-dos, and reminders with the user's Google Calendar account.

Authentication

• OAuth2 authentication with Google Calendar API
• Requires credentials.json from Google Cloud Console
• Token-based authentication with automatic refresh
• Supports desktop application authentication flow

Features

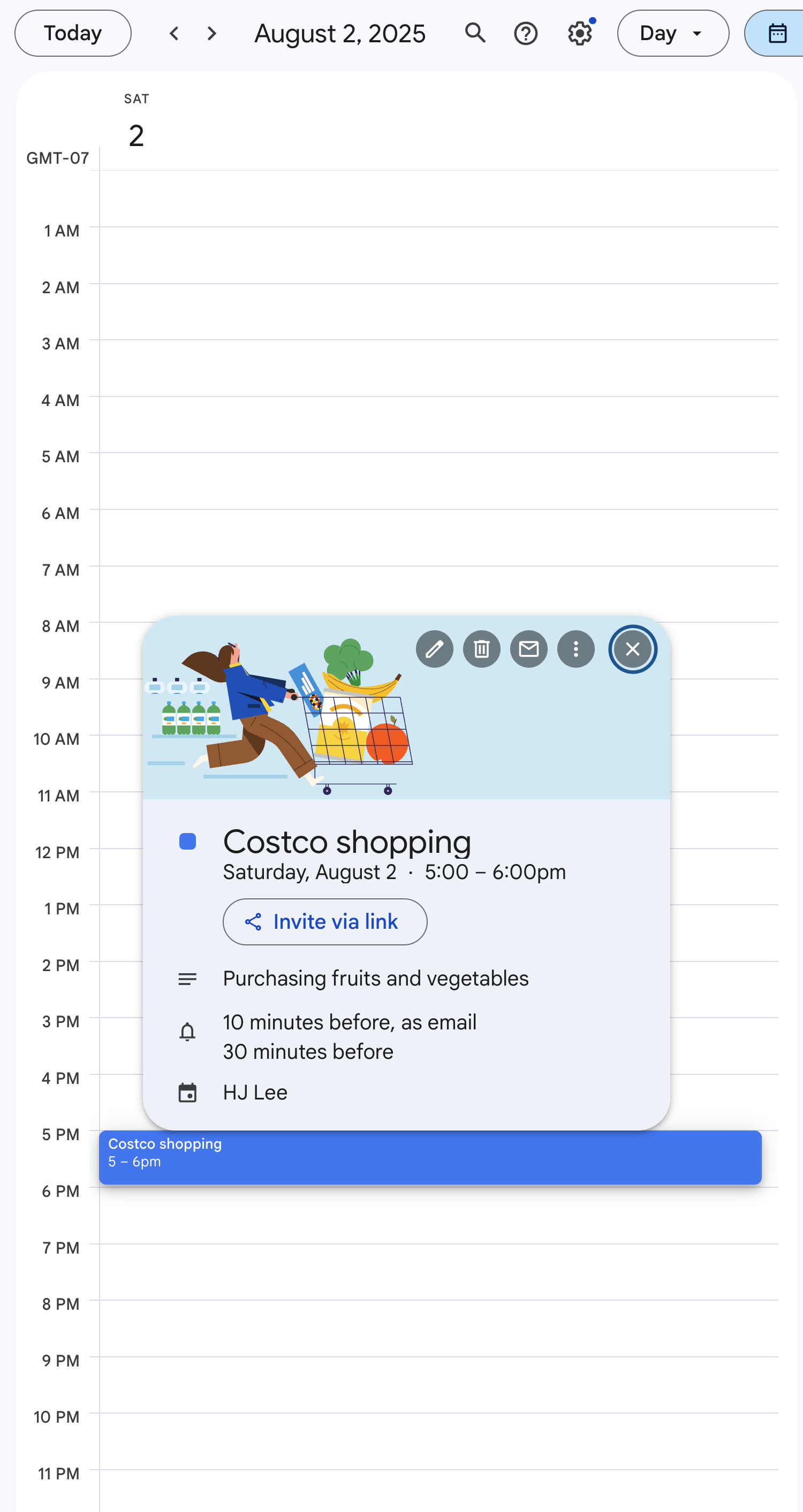

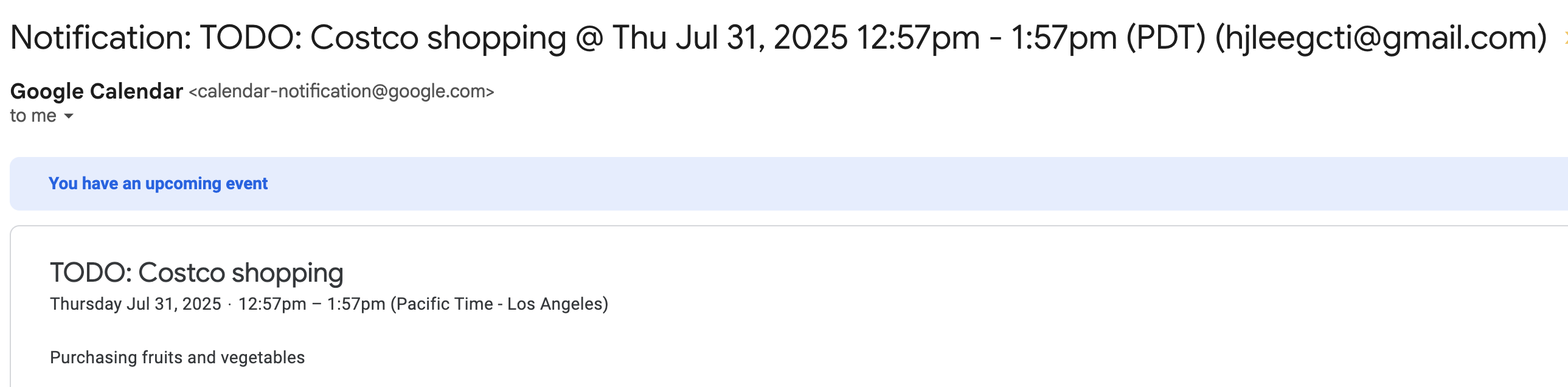

• Automatic event creation in Google Calendar
• Real-time synchronization with database

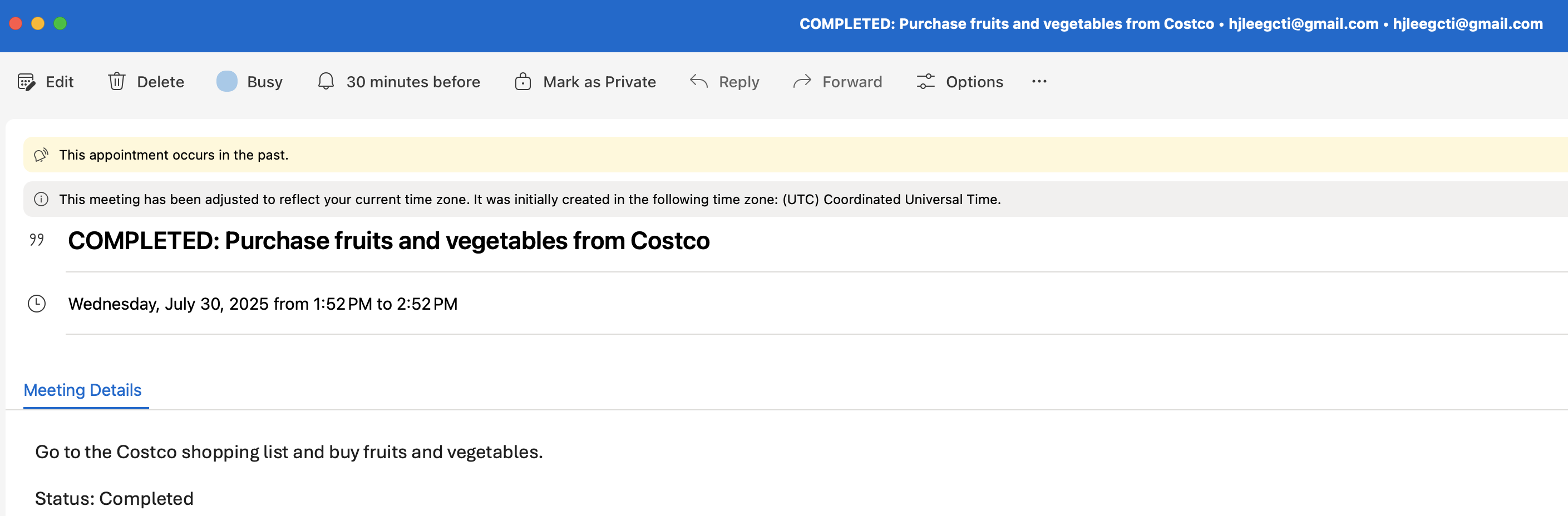

• Event updates and deletions
• Timezone-aware datetime handling

Implementation Details

Service Location: shared/google_calendar.py

Main Class: GoogleCalendarService

Global Access: get_calendar_service()

API Methods

• create_event() - Create new calendar event
• update_event() - Update existing event
• delete_event() - Delete calendar event
• get_event() - Retrieve event details

Response Format

All API responses follow a consistent structure:

{
  "results": [
    {
      "toolCallId": "string",
      "result": "success" | object | array
    }
  ]
}

Synthflow Configuration & Deployment

1. Synthflow.ai Setup

Go to synthflow.ai and create an account or log in.
Go to the Synthflow menu in the left panel and create an agent.
Go to Actions menu and create Custom Actions:
- toDoList: createTodo, getTodos, completeTodo, deleteTodo
- reMinder: addReminder, getReminder, deleteReminder
- calendar: addCalendarEntry, getCalendarEntries, deleteCalendarEntry
Configure Agent (General, Voice, Call Configuration):
- AI Model: GPT 4o or your choice
- Timezone: US/Pacific
- Language: English or your preference
- Voice: Jessica or your preference
- Enable Recording and Transcripts
Configure Prompt (Greeting, Agent Info, Personality, Role, Goal, Conversation Style, Script Instructions)
Configure Actions (assign to Before, During, or After the call as needed)
Deployment: Assign a phone number and set up greeting message
